GAS项目笔记4

AWarriorAIController(const FObjectInitializer& ObjectInitializer);
AWarriorAIController::AWarriorAIController(const FObjectInitializer& ObjectInitializer)
	: Super(ObjectInitializer.SetDefaultSubobjectClass<UCrowdFollowingComponent>("PathFollowingComponent"))
{
	if (UCrowdFollowingComponent* CrowdComp = Cast<UCrowdFollowingComponent>(GetPathFollowingComponent()))
	{
		Debug::Print(TEXT("CrowdFollowingComponent valid"));
	}
}

AISenseConfig_Sight = CreateDefaultSubobject<UAISenseConfig_Sight>(TEXT("EnemySenseConfig_Sight"));
AISenseConfig_Sight->DetectionByAffiliation.bDetectEnemies = true;
AISenseConfig_Sight->DetectionByAffiliation.bDetectFriendlies = false;
AISenseConfig_Sight->DetectionByAffiliation.bDetectNeutrals = false;
AISenseConfig_Sight->SightRadius = 5000.f;
AISenseConfig_Sight->LoseSightRadius = 0.f;
AISenseConfig_Sight->PeripheralVisionAngleDegrees = 360.f;
EnemyPerceptionComponent = CreateDefaultSubobject<UAIPerceptionComponent>(TEXT("EnemyPerceptionComponent"));
EnemyPerceptionComponent->ConfigureSense(*AISenseConfig_Sight);
EnemyPerceptionComponent->SetDominantSense(UAISenseConfig_Sight::StaticClass());
// 当视觉感知状态变化时执行 OnEnemyPerceptionUpdated
EnemyPerceptionComponent->OnTargetPerceptionUpdated.AddUniqueDynamic(this, &ThisClass::OnEnemyPerceptionUpdated);

//~ Begin IGenericTeamAgentInterface Interface
virtual ETeamAttitude::Type GetTeamAttitudeTowards(const AActor& Other) const;
//~ End IGenericTeamAgentInterface Interface
ETeamAttitude::Type AWarriorAIController::GetTeamAttitudeTowards(const AActor& Other) const
{
	const APawn* PawnToCheck = Cast<const APawn>(&Other);
	const IGenericTeamAgentInterface* OtherTeamAgent = Cast<const IGenericTeamAgentInterface>(PawnToCheck->GetController());
	if (OtherTeamAgent && OtherTeamAgent->GetGenericTeamId() != GetGenericTeamId())
	{
		return ETeamAttitude::Hostile;
	}
	return ETeamAttitude::Friendly;
}

virtual void OnEnemyPerceptionUpdated(AActor* Actor, FAIStimulus Stimulus);
void AWarriorAIController::OnEnemyPerceptionUpdated(AActor* Actor, FAIStimulus Stimulus)
{
    if (Stimulus.WasSuccessfullySensed() && Actor)
    {
       if (UBlackboardComponent* BlackboardComponent = GetBlackboardComponent())
       {
          BlackboardComponent->SetValueAsObject(FName("TargetActor"), Actor);
       }
    }
}

private:

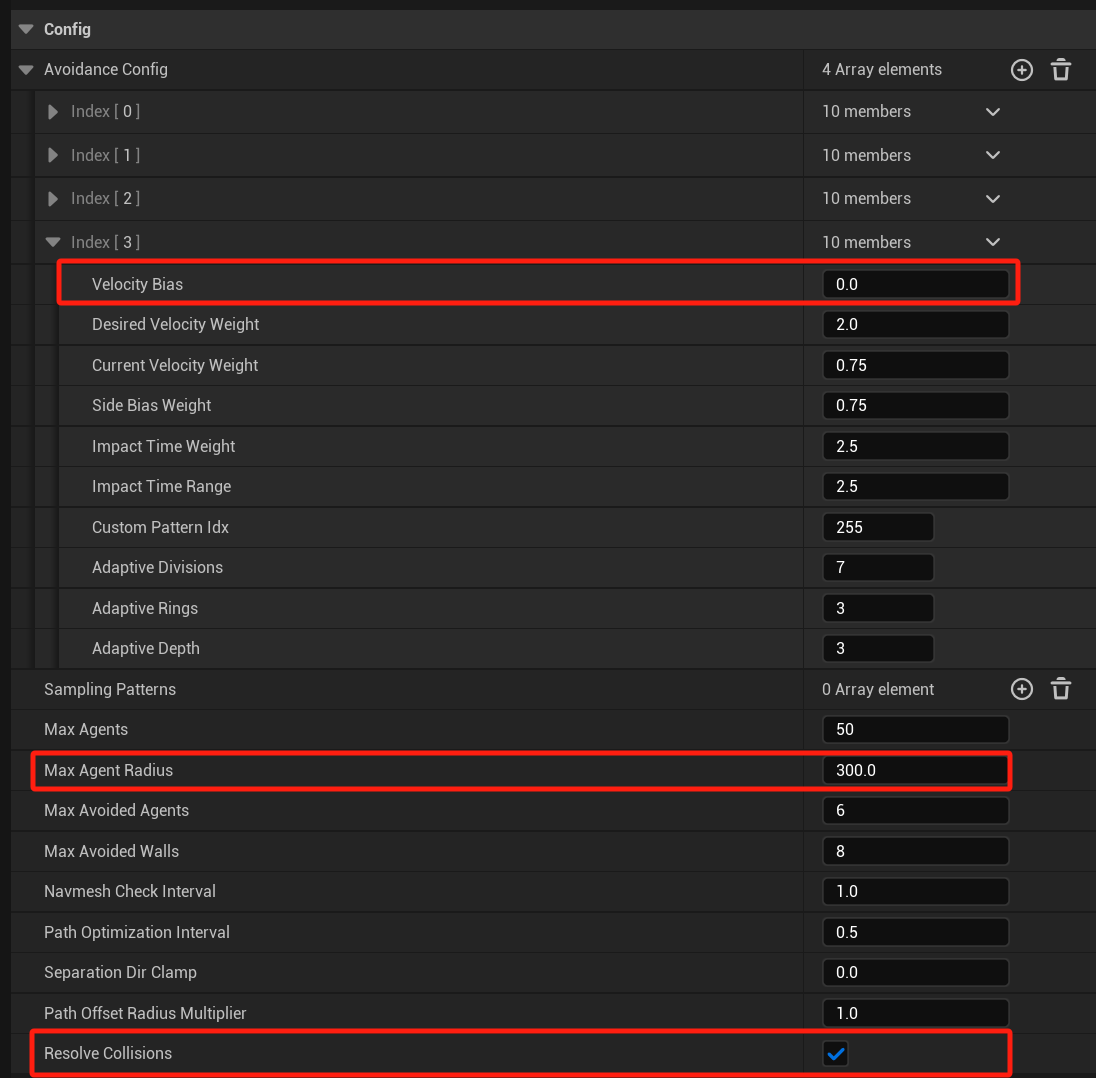

	UPROPERTY(EditDefaultsOnly, Category = "Detour Crowd Avoidance Config")
	bool bEnableDetourCrowdAvoidance = true;

	UPROPERTY(EditDefaultsOnly, Category = "Detour Crowd Avoidance Config", meta = (EditCondition = "bEnableDetourCrowdAvoidance", UIMin = "1", UIMax = "4"))
	int32 DetourCrowdAvoidanceQuality = 4;

	UPROPERTY(EditDefaultsOnly, Category = "Detour Crowd Avoidance Config", meta = (EditCondition = "bEnableDetourCrowdAvoidance"))
	float CollisionQueryRange = 600.f;

void AWarriorAIController::BeginPlay()
{
    Super::BeginPlay();
    if (UCrowdFollowingComponent* CrowdComp = Cast<UCrowdFollowingComponent>(GetPathFollowingComponent()))
    {
       CrowdComp->SetCrowdSimulationState(bEnableDetourCrowdAvoidance ? ECrowdSimulationState::Enabled : ECrowdSimulationState::Disabled);
       switch (DetourCrowdAvoidanceQuality)
       {
       case 1: CrowdComp->SetCrowdAvoidanceQuality(ECrowdAvoidanceQuality::Low);   break;
       case 2: CrowdComp->SetCrowdAvoidanceQuality(ECrowdAvoidanceQuality::Medium); break;
       case 3: CrowdComp->SetCrowdAvoidanceQuality(ECrowdAvoidanceQuality::Good);  break;
       case 4: CrowdComp->SetCrowdAvoidanceQuality(ECrowdAvoidanceQuality::High);  break;
       default:
          break;
       }
       CrowdComp->SetAvoidanceGroup(1);
       CrowdComp->SetGroupsToAvoid(1);
       CrowdComp->SetCrowdCollisionQueryRange(CollisionQueryRange);
    }
}

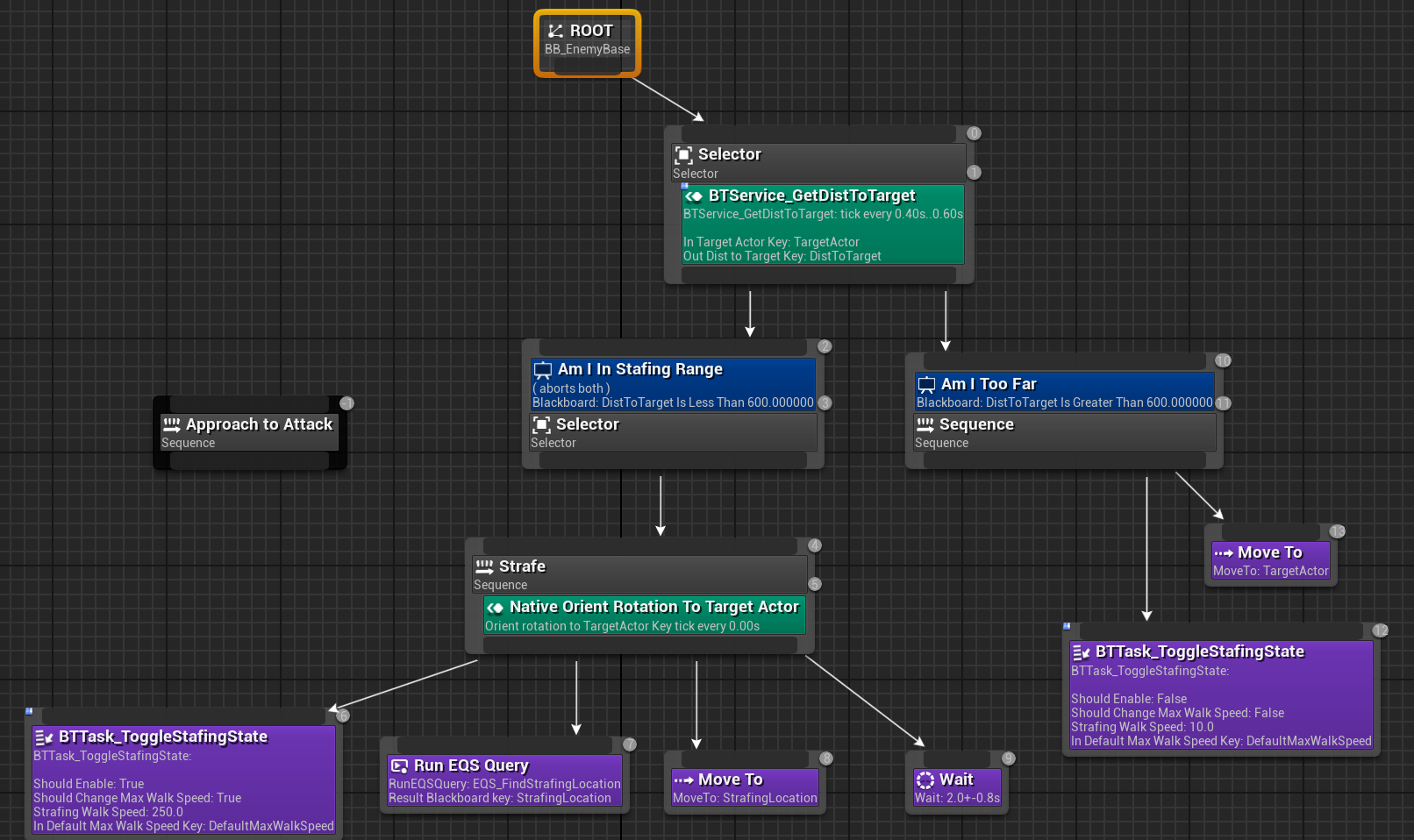

UBTService_OrientToTargetActor();

//~ Begin UBTNode Interface
virtual void InitializeFromAsset(UBehaviorTree& Asset) override;
virtual FString GetStaticDescription() const override;
//~ End UBTNode Interface

virtual void TickNode(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory, float DeltaSeconds) override;

UPROPERTY(EditAnywhere, Category = "Target")
FBlackboardKeySelector InTargetActorKey;

UPROPERTY(EditAnywhere, Category = "Target")
float RotationInterpSpeed;

UBTService_OrientToTargetActor::UBTService_OrientToTargetActor()
{
	NodeName = TEXT("Native Orient Rotation To Target Actor");
	INIT_SERVICE_NODE_NOTIFY_FLAGS(); // // UE 内部宏，启用 Tick / OnSearchStart 等回调
	RotationInterpSpeed = 5.f;
	Interval = 0.f;
	RandomDeviation = 0.f;
	// 声明这个 BlackboardKey 只能选择 Object 类型，且必须是 Actor 类型
	InTargetActorKey.AddObjectFilter(this, GET_MEMBER_NAME_CHECKED(ThisClass, InTargetActorKey), AActor::StaticClass());
}
void UBTService_OrientToTargetActor::InitializeFromAsset(UBehaviorTree& Asset)
{
	Super::InitializeFromAsset(Asset);
	if (UBlackboardData* BBAsset = GetBlackboardAsset())
	{
		// 把行为树里选择的黑板 Key 绑定过来
		InTargetActorKey.ResolveSelectedKey(*BBAsset);
	}
}
FString UBTService_OrientToTargetActor::GetStaticDescription() const
{
	const FString KeyDescription = InTargetActorKey.SelectedKeyName.ToString();
	return FString::Printf(TEXT("Orient rotation to %s Key %s"), *KeyDescription, *GetStaticServiceDescription());
}
void UBTService_OrientToTargetActor::TickNode(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory, float DeltaSeconds)
{
	Super::TickNode(OwnerComp, NodeMemory, DeltaSeconds);
	// 拿到目标对象和 AI 所控制的 Pawn
	UObject* ActorObject = OwnerComp.GetBlackboardComponent()->GetValueAsObject(InTargetActorKey.SelectedKeyName);
	AActor* TargetActor = Cast<AActor>(ActorObject);
	APawn* OwningPawn = OwnerComp.GetAIOwner()->GetPawn();
	if (OwningPawn && TargetActor)
	{
		// 计算我该朝向的角度
		const FRotator LookAtRot = UKismetMathLibrary::FindLookAtRotation(OwningPawn->GetActorLocation(), TargetActor->GetActorLocation());
		const FRotator TargetRot = FMath::RInterpTo(OwningPawn->GetActorRotation(), LookAtRot, DeltaSeconds, RotationInterpSpeed);
		OwningPawn->SetActorRotation(TargetRot); // 插值转向
	}
}

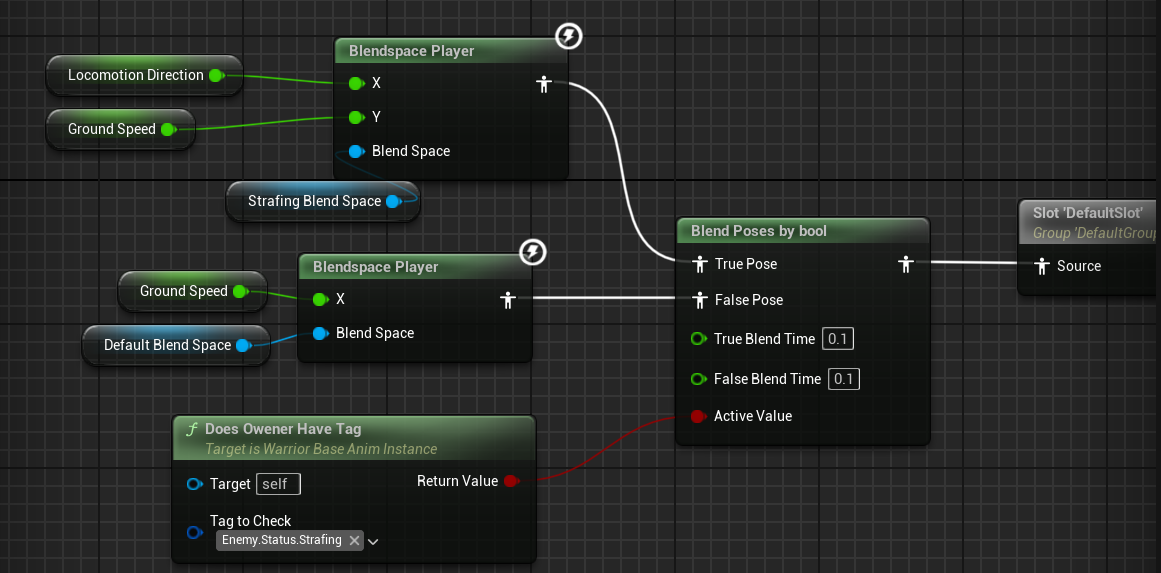

LocomotionDirection = UKismetAnimationLibrary::CalculateDirection(OwningCharacter->GetVelocity(), OwningCharacter->GetActorRotation());

bool UWarriorBaseAnimInstance::DoesOwnerHaveTag(FGameplayTag TagToCheck) const
{
    if (APawn* OwningPawn = TryGetPawnOwner())
    {
       return UWarriorFunctionLibrary::NativeDoesActorHaveTag(OwningPawn, TagToCheck);
    }
    return false;
}

bool UWarriorAbilitySystemComponent::TryActivateAbilityByTag(FGameplayTag AbilityTagToActivate)
{
    check(AbilityTagToActivate.IsValid());
    TArray<FGameplayAbilitySpec*> FoundAbilitySpec;
    GetActivatableGameplayAbilitySpecsByAllMatchingTags(AbilityTagToActivate.GetSingleTagContainer(), FoundAbilitySpec);
    if (!FoundAbilitySpec.IsEmpty())
    {
       const int32 RandomAbilityIndex = FMath::RandRange(0, FoundAbilitySpec.Num() - 1);
       FGameplayAbilitySpec* SpecToActivate = FoundAbilitySpec[RandomAbilityIndex];
       check(SpecToActivate);
       if (!SpecToActivate->IsActive())
       {
          return TryActivateAbility(SpecToActivate->Handle);
       }
    }
    return false;
}

void AWarriorWeaponBase::OnCollisionBoxBeginOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor,
                                                    UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult)
{
	APawn* WeaponOwningPawn = GetInstigator<APawn>();
	checkf(WeaponOwningPawn, TEXT("Forget to assign an instigator as the owning pawn of the weapon: %s"), *GetName());
	if (APawn* HitPawn = Cast<APawn>(OtherActor))
	{
		if (WeaponOwningPawn != HitPawn)
		{
			OnWeaponHitTarget.ExecuteIfBound(OtherActor);
		}
	}
}

bool UWarriorFunctionLibrary::IsTargetPawnHostile(APawn* QueryPawn, APawn* TargetPawn)
{
    check(QueryPawn && TargetPawn);
    IGenericTeamAgentInterface* QueryTeamAgent = Cast<IGenericTeamAgentInterface>(QueryPawn->GetController());
    IGenericTeamAgentInterface* TargetTeamAgent = Cast<IGenericTeamAgentInterface>(TargetPawn->GetController());
    if (QueryTeamAgent && TargetTeamAgent)
    {
       return QueryTeamAgent->GetGenericTeamId() != TargetTeamAgent->GetGenericTeamId();
    }
    return false;
}

void AWarriorWeaponBase::OnCollisionBoxBeginOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor,
                                                    UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult)
{
    APawn* WeaponOwningPawn = GetInstigator<APawn>();
    checkf(WeaponOwningPawn, TEXT("Forget to assign an instigator as the owning pawn of the weapon: %s"), *GetName());

    if (APawn* HitPawn = Cast<APawn>(OtherActor))
    {
       if (UWarriorFunctionLibrary::IsTargetPawnHostile(WeaponOwningPawn, HitPawn))
       {
          OnWeaponHitTarget.ExecuteIfBound(OtherActor);
       }
    }
}
void AWarriorWeaponBase::OnCollisionBoxEndOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor,
                                                  UPrimitiveComponent* OtherComp, int32 OtherBodyIndex)
{
    APawn* WeaponOwningPawn = GetInstigator<APawn>();
    checkf(WeaponOwningPawn, TEXT("Forget to assign an instigator as the owning pawn of the weapon: %s"), *GetName());
    if (APawn* HitPawn = Cast<APawn>(OtherActor))
    {
       if (UWarriorFunctionLibrary::IsTargetPawnHostile(WeaponOwningPawn, HitPawn))
       {
          OnWeaponPulledFromTarget.ExecuteIfBound(OtherActor);
       }
    }
}

UAbilitySystemBlueprintLibrary::SendGameplayEventToActor(
    GetOwningPawn(),
    WarriorGameplayTags::Shared_Event_MeleeHit,
    EventData
);

FGameplayEffectSpecHandle UWarriorEnemyGameplayAbility::MakeEnemyDamageEffectSpecHandle(
    TSubclassOf<UGameplayEffect> EffectClass, const FScalableFloat& InDamageScalableFloat)
{
    check(EffectClass);
    FGameplayEffectContextHandle ContextHandle = GetWarriorAbilitySystemComponentFromActorInfo()->MakeEffectContext();
    ContextHandle.SetAbility(this);
    ContextHandle.AddSourceObject(GetAvatarActorFromActorInfo());
    ContextHandle.AddInstigator(GetAvatarActorFromActorInfo(), GetAvatarActorFromActorInfo());

    FGameplayEffectSpecHandle EffectSpecHandle = GetWarriorAbilitySystemComponentFromActorInfo()->MakeOutgoingSpec(
       EffectClass,
       GetAbilityLevel(),
       ContextHandle
    );
    EffectSpecHandle.Data->SetSetByCallerMagnitude(
       WarriorGameplayTags::Shared_SetByCaller_BaseDamage,
       InDamageScalableFloat.GetValueAtLevel(GetAbilityLevel())
    );
    return EffectSpecHandle;
}

UBTTask_RotateToFaceTarget::UBTTask_RotateToFaceTarget()
{
    NodeName = TEXT("Native Rotate to Face Target Actor");
    AnglePrecision = 10.f;
    RotationInterpSpeed = 5.f;
    bNotifyTick = true;
    bNotifyTaskFinished = true; // 使节点能收到任务结束的通知
    bCreateNodeInstance = false; // 不是为每个实例创建独立的UObject实例

    INIT_TASK_NODE_NOTIFY_FLAGS(); // 初始化通知标志
    // 给黑板 key 添加过滤器，仅允许选择 AActor 类型
    InTargetToFaceKey.AddObjectFilter(this, GET_MEMBER_NAME_CHECKED(ThisClass, InTargetToFaceKey), AActor::StaticClass());
}

void UBTTask_RotateToFaceTarget::InitializeFromAsset(UBehaviorTree& Asset)
{
    Super::InitializeFromAsset(Asset);
    if (UBlackboardData* BBAsset = GetBlackboardAsset())
    {
       InTargetToFaceKey.ResolveSelectedKey(*BBAsset);
    }
}

// 返回内存大小
uint16 UBTTask_RotateToFaceTarget::GetInstanceMemorySize() const
{
    return sizeof(FRotateToFaceTargetTaskMemory);
}

// 节点描述
FString UBTTask_RotateToFaceTarget::GetStaticDescription() const
{
    const FString KeyDescription = InTargetToFaceKey.SelectedKeyName.ToString();
    return FString::Printf(TEXT("Rotate to face %s Key until the angle precision: %s is reached"), *KeyDescription, *FString::SanitizeFloat(AnglePrecision));
}

EBTNodeResult::Type UBTTask_RotateToFaceTarget::ExecuteTask(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory)
{
    UObject* ActorObject = OwnerComp.GetBlackboardComponent()->GetValueAsObject(InTargetToFaceKey.SelectedKeyName);
    AActor* TargetActor = Cast<AActor>(ActorObject);
    APawn* OwningPawn = OwnerComp.GetAIOwner()->GetPawn();
    FRotateToFaceTargetTaskMemory* Memory = CastInstanceNodeMemory<FRotateToFaceTargetTaskMemory>(NodeMemory);
    check(Memory);
    Memory->OwningPawn = OwningPawn;
    Memory->TargetActor = TargetActor;
    if (!Memory->IsValid())
    {
       return EBTNodeResult::Failed;
    }
    // 执行函数使其面向目标，之后清除内存
    if (HasReachedAnglePrecision(OwningPawn, TargetActor))
    {
       Memory->Reset();
       return EBTNodeResult::Succeeded;
    }
    // 任务还没完成 行为树会等待并每帧调用TickTask
    return EBTNodeResult::InProgress;
}

void UBTTask_RotateToFaceTarget::TickTask(UBehaviorTreeComponent& OwnerComp, uint8* NodeMemory, float DeltaSeconds)
{
    FRotateToFaceTargetTaskMemory* Memory = CastInstanceNodeMemory<FRotateToFaceTargetTaskMemory>(NodeMemory);
    // 如果Memory引用无效 任务失败 结束任务
    if (!Memory->IsValid())
    {
       FinishLatentTask(OwnerComp, EBTNodeResult::Failed);
    }
    // 达到角度 就清除内存 任务成功 结束任务
    if (HasReachedAnglePrecision(Memory->OwningPawn.Get(), Memory->TargetActor.Get()))
    {
       Memory->Reset();
       FinishLatentTask(OwnerComp, EBTNodeResult::Succeeded);
    }
    else // 插值平滑旋转
    {
       const FRotator LookAtRot = UKismetMathLibrary::FindLookAtRotation(Memory->OwningPawn->GetActorLocation(), Memory->TargetActor->GetActorLocation());
       const FRotator TargetRot = FMath::RInterpTo(Memory->OwningPawn->GetActorRotation(), LookAtRot, DeltaSeconds, RotationInterpSpeed);
       Memory->OwningPawn->SetActorRotation(TargetRot);
    }
}

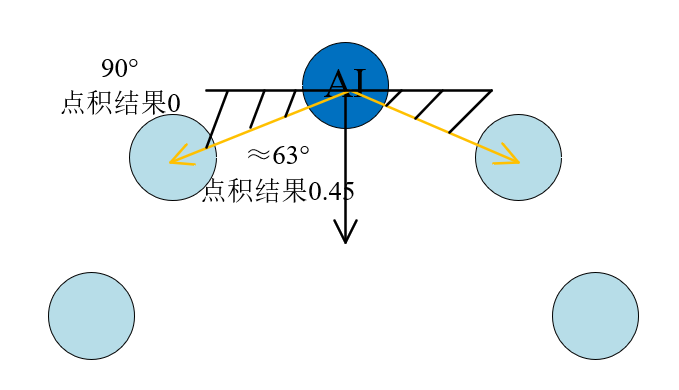

// 计算当前朝向和 (TargetActor与OwnerPawn的向量) 夹角是否在旋转区间内
bool UBTTask_RotateToFaceTarget::HasReachedAnglePrecision(APawn* QueryPawn, AActor* TargetActor) const
{
    const FVector OwnerForward = QueryPawn->GetActorForwardVector();
    const FVector OwnerToTargetNormalized = (TargetActor->GetActorLocation() - QueryPawn->GetActorLocation()).GetSafeNormal();

    const float DotResult = FVector::DotProduct(OwnerForward, OwnerToTargetNormalized);
    const float AngleDiff = UKismetMathLibrary::DegAcos(DotResult);
    return AngleDiff <= AnglePrecision;
}
